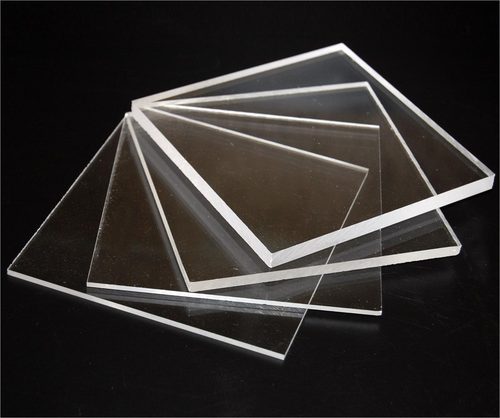

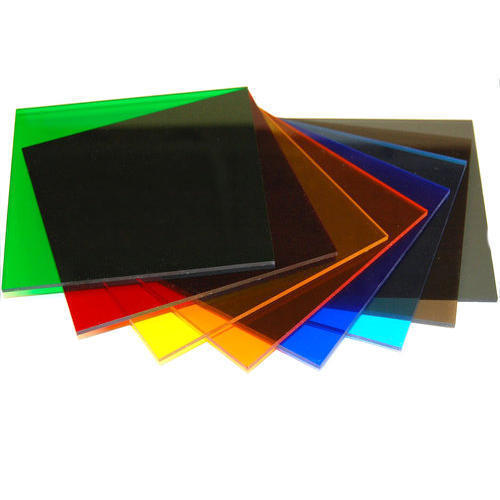

These products are manufactured using premium quality raw material and advanced technology at vendor’s end. The products we offer are in strict adherence with the international quality standards. These sheets are available in different sizes, colors (Clear, Opaque, Translucent) & thickness as per customer’s requirement.
Applications:-
- Lightweight
- Corrosion resistance
- Easy installation
- License Plate
- Shower Cabin Doors
- Signage / Letters
Features :-
- Plastic Models
- Pictures Frames
- Light Boxes
- Dimensional Accuracy
- Perfect Finish
- Cost Effective
CAST acrylic, as the name suggests, is manufactured by a process whereby MMA (Methyl Methacrylate monomer) liquid is pumped into a mould made from two sheets of glass. The mould / monomer is then submerged in warm water and the process of polymerization takes place. The result is a sheet of rigid PMMA (polymethyl methacrylate) or what is generically called Acrylic.

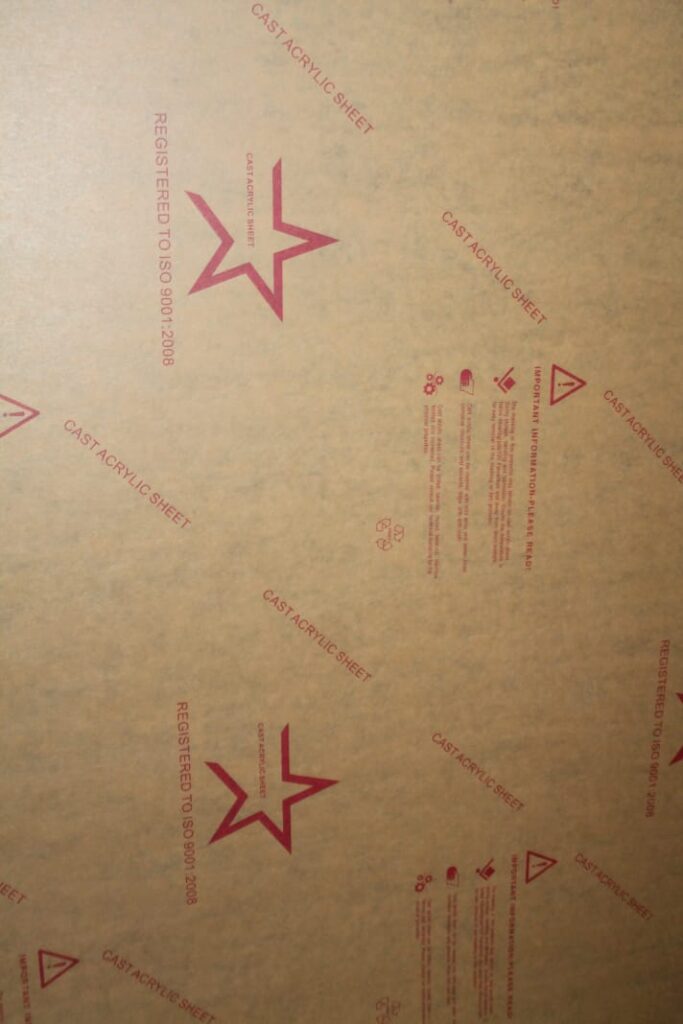

Our Cell Cast Acrylic sheet brands are “A-Cast” and “Star Acrylic Sheets”. These are imported from Malaysia. They are well-renowned brands in the market due to their superior quality. These sheets are made from 100% virgin MMA sourced from reliable suppliers.
Extruded Acrylic sheets are manufactured by a continuous production process. Acrylic or PMMA pellets are fed from a containment silo to a feed hopper above an extruder line and then produced through the extrusion process using single or twin screw auger system.
Our Extruded Sheets – “AP Bond” are made with very high quality using the best of raw material sourced from the reputable suppliers. These are made in Malaysia.
Property(a) | – | ASTM Method | Typical Value (0.236 Thickness)(b) |
---|---|---|---|
Mechanical | Specific Gravity | D 792 | 1.19 |
Tensile Strength -Elongation -Modulus Of Elasticity |
D 638 – – |
10,000 psi (69 M Pa) 4.2% 400,000 psi (2800 M Pa) |
|
Flexural Strength (Rupture) -Modulus Of Elasticity |
D 790 – |
16,500 psi (114 M Pa) 475,000 psi (3300 M Pa) |
|
Compressive Strength (Yield) -Modulus Of Elasticity |
D 695 – |
18,000 psi (124 M Pa) 430,000 psi (2960 M Pa) |
|
Shear Strength | D 732 | 9000 psi (62 M Pa) | |
Impact Strength -Izod Milled Notch |
– D256 |
0.4 ft. lbs/in of notch (21.6 J/m of notch) |
|
Rockwell Hardness | D785 | M-94 | |
Barcol Hardness | D2583 | 49 | |
Residual Shrinkage(c) (Internal Strain) | D 702 | 2% | |
Optical (Clear Material) |
Refractive Index | D 542 | 149 |
Light Transmission, Total -UV Transmission -Haze |
D 1003 – |
92% 0 at 320 nanometers Less than 1% |
|
Thermal | Forming Temperature | – | 340 – 380°F (170-190°C) |
Deflection Temperature under Load, 264 psi | D 648 | 210°F (99°C) | |
Vicat Softening Point | D 1525 | 239°F (115°C) | |
Maximum Recommended Continuous Service Temperature |
– | 180°F (d) (82°C) | |
Coefficient of Linear Thermal Expansion | D 696 | 0.000040 in/in-°F (0.000072 m/m-°C) | |
Coefficient of Thermal Conductivity (k-factor) | CencoFitch | 1.3 BTU/(Hr) (Sq. Ft) (°F/in) (0.19 w/m·K) | |
Flammability (Burning Rate 3mm thickness) | D 635 | 1.2 in/min. (30.5 mm/min.) | |
Specific Heat @ 77°F | – | 0.35 BTU/(lb.)( °F) (1470 J/Kg·k) | |
Smoke Density Rating (3mm Thickness) | D 2843 | 11.4% | |
Electrical | Dielectric Strength -Short Time (0.1 25” Thickness) |
– D 149 |
430 volts/mil (17 KV/mm) |
Dielectric Constant -60 Hertz -1,000 Hertz -1,000,000 Hertz |
– D 150 – – |
– 3.5 3.2 2.7 |
|
Dissipation Factor -60 Hertz -1,000 Hertz -1,000,000 Hertz |
– D 150 – – |
– 0.06 0.04 0.02 |
|
Volume Resistivity | D 257 | 1.6 x 1016ohm-cm | |
Surface Resistivity | D 257 | 1.9 x 1015ohm-cm | |
Water Absorption | 24 hrs @ 73˚F -Weight Gain during Immersion -Soluble Matter Lost -Water Absorbed -Dimensional Change during Immersion |
– D 570 – – – |
– 0.2% 0.2% 0.2% 0.2% |
Long Term Water Absorption | Weight Gain During Immersion 7 Days 14 Days 35 Days 48 Days |
– D 570 – – |
– 0.5% 0.6% 1.0% 1.1% |
Odor | – | None | |
Taste | – | None |
